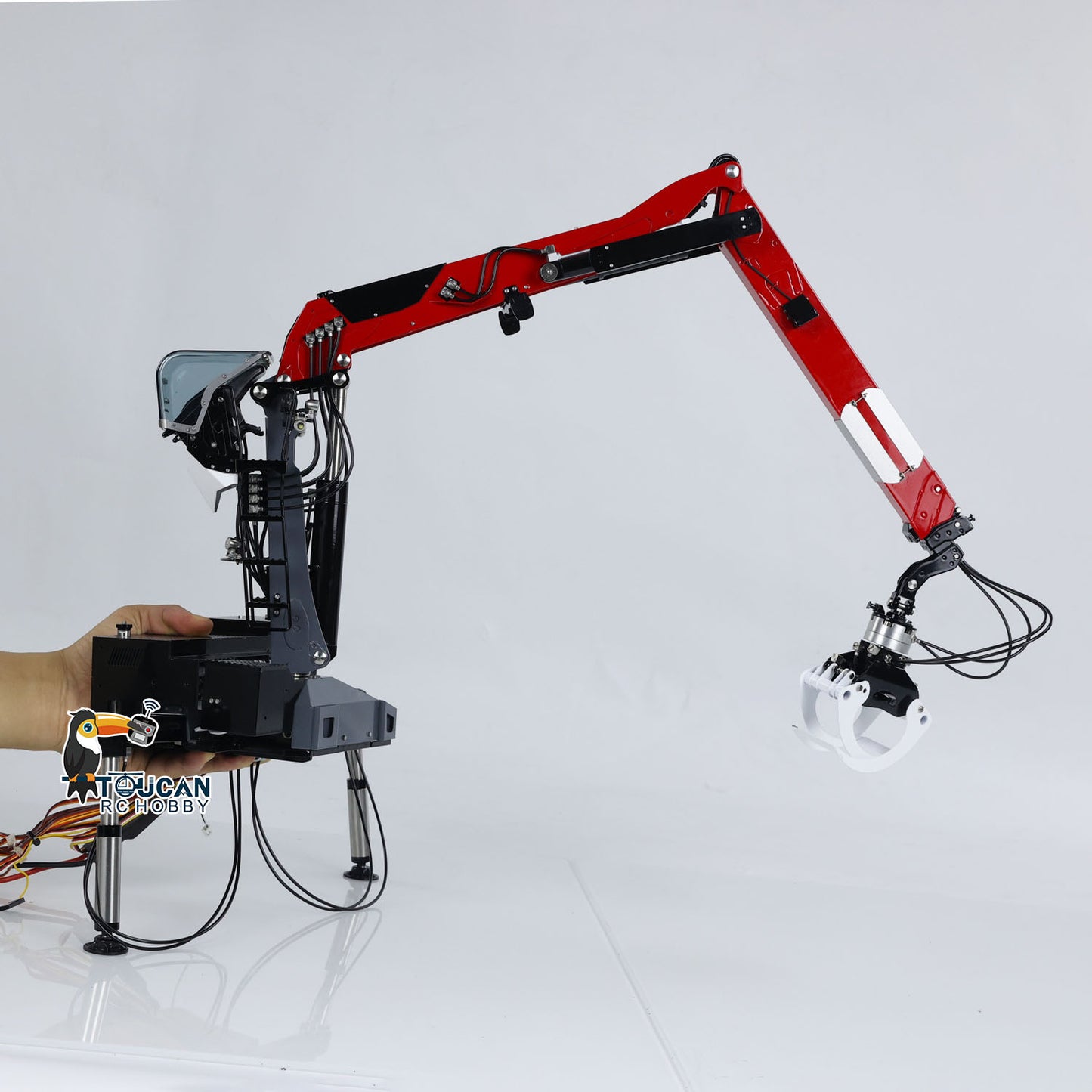

IN STOCK LESU Metal Hydraulic RC Timber Crane for 1/14 Log Radio Controlled Trailer Wood Tractor Truck Simulation Car Painted Assembled DIY Model

This product is only suitable for toy models and is not suitable for real vehicles

Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Product weight: 3.3kg
Product size: 235.2x142.4x317
Suitable For: 1/14 RC Log Trailer Wood Hauling Car Remote Control Tractor Truck, DIY Model
ID: LS-A0002-RTR-RBK

The Package Includes:
1PC Timber Crane

Features:
1. Hydraulic telescopic support legs make the operation of wood cranes safer, smoother, and more reliable.
2. The dual hydraulic rotary cylinder design can achieve 360 ° rotation, allowing the wood crane to operate without dead angles.
3. Emulation hydraulic three-stage telescopic arm design, making the range of wood crane operations wider.
4. The design of the hydraulic anti-joint folding arm makes the linkage of wood crane more flexible.

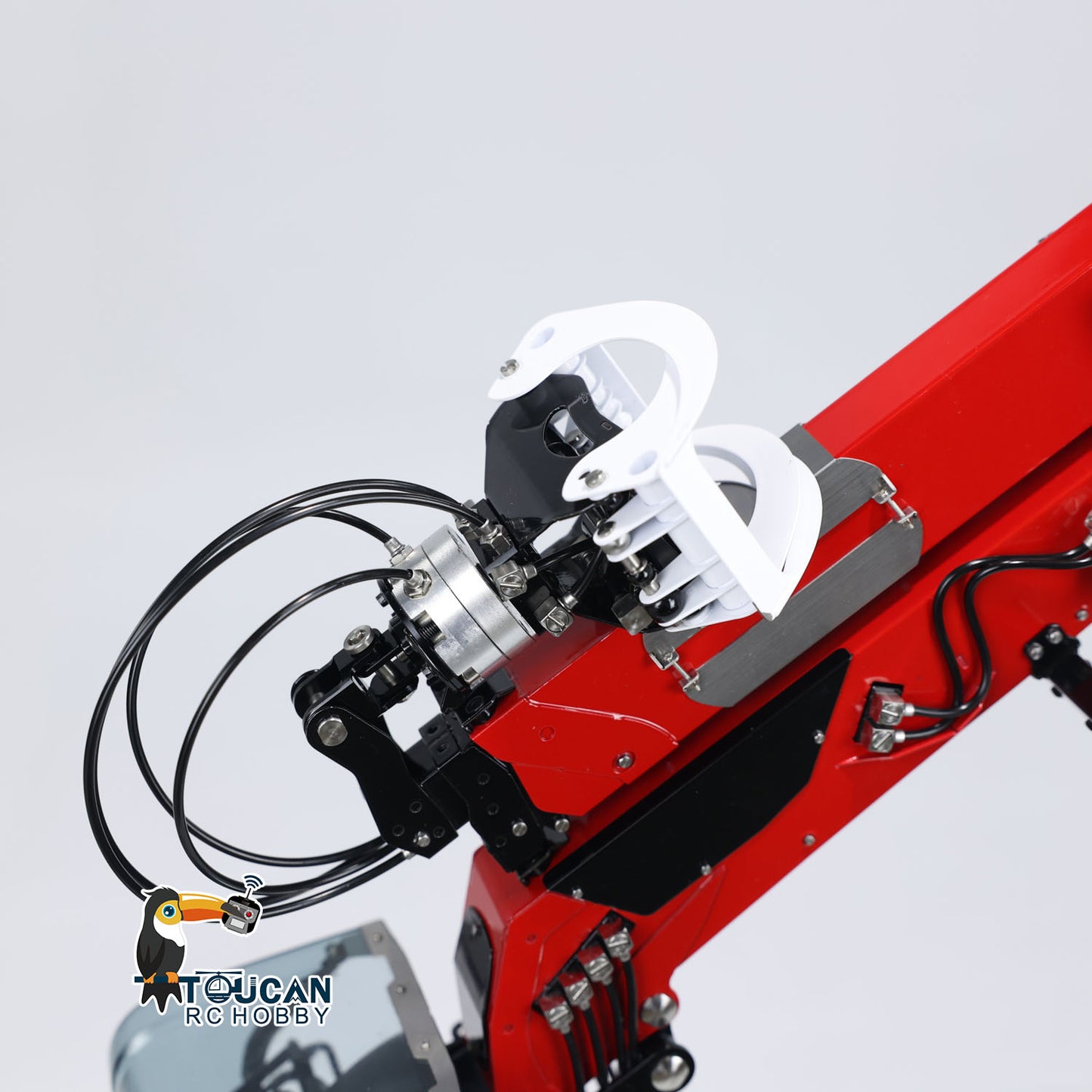

5. The rotatable hydraulic wood clamp makes the wood crane operation more flexible and has high playability.
6. 95% of the entire machine is made up of metal parts, equipped with flip open cockpit.
7. The hydraulic workstation's oil circuit system is 90% copper welded, and the entire machine's oil pipes are arranged neatly.
8. Modular design of the entire machine, full machine emulation of lamplight.
9. Precision hydraulic system, more coordinated, smooth and linear movements.

Parameter:
Total length of lateral extension of supporting legs: 310.6mm
Total length of longitudinal extension of supporting legs: 130.4mm
Working Range: 360°(One side 90°, the other side 270°, NOT 360° infinite rotation)
Wood clip rotation angle: 270°
Hydraulic workstation maximum pressure/MPA: 4
Number of reversing valve channels: 8
Hydraulic workstation rated pressure/MPA: 3
Number of hydraulic pumps: 1
Maximum lifting weight (third level arm not extended)/kg: 3.6
Maximum lifting weight (fully extended third level arm)/kg: 1.9
Rated working voltage: 7V-12V
