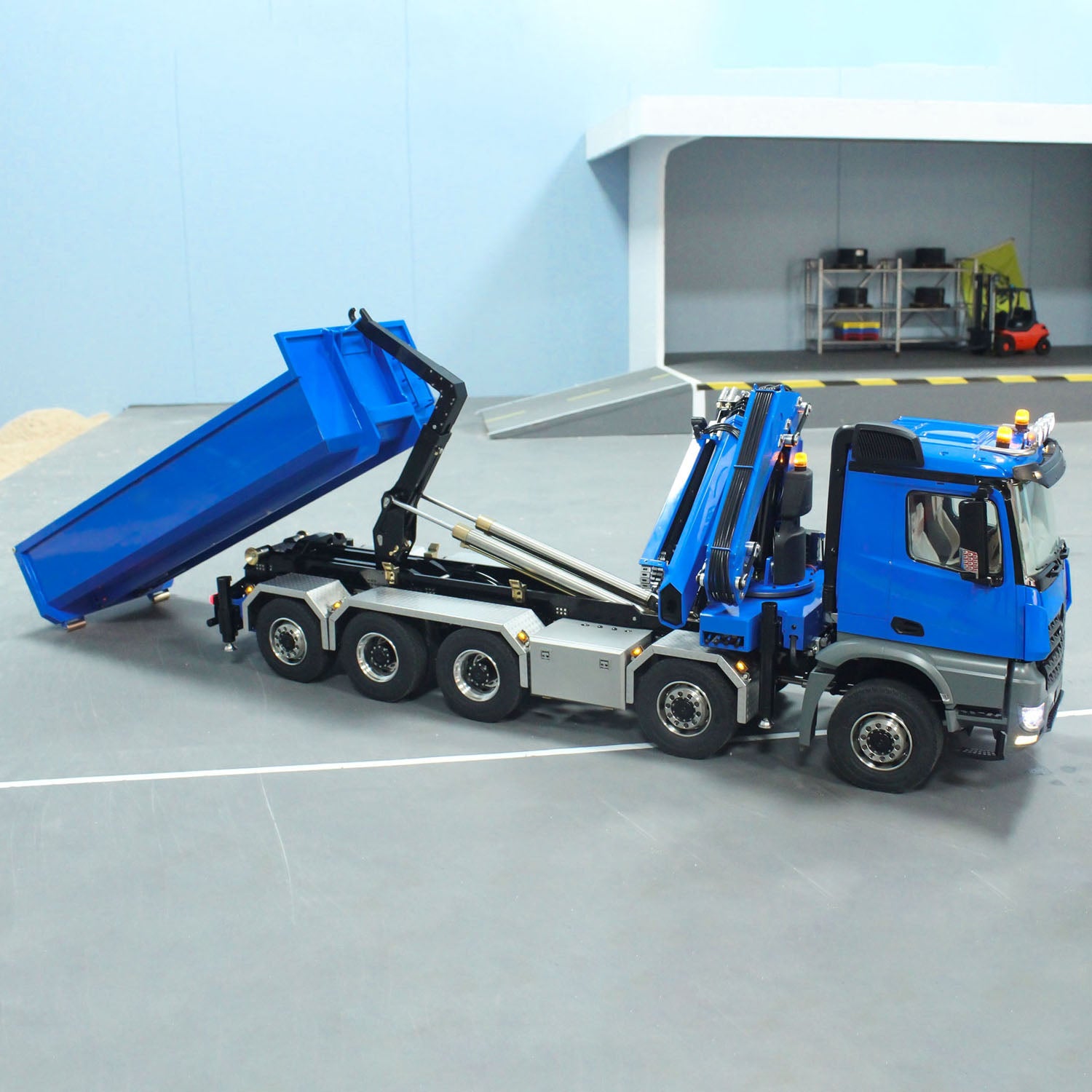

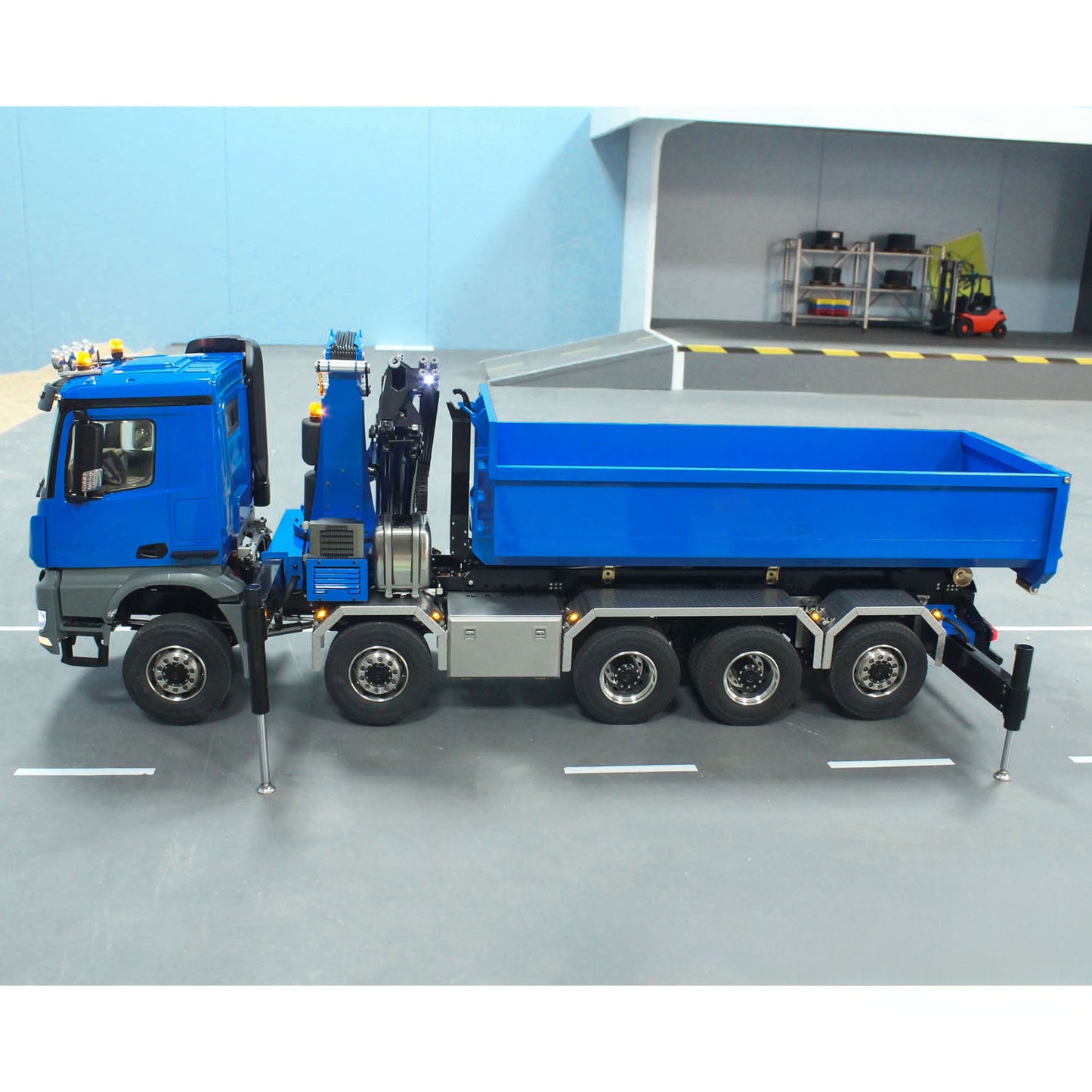

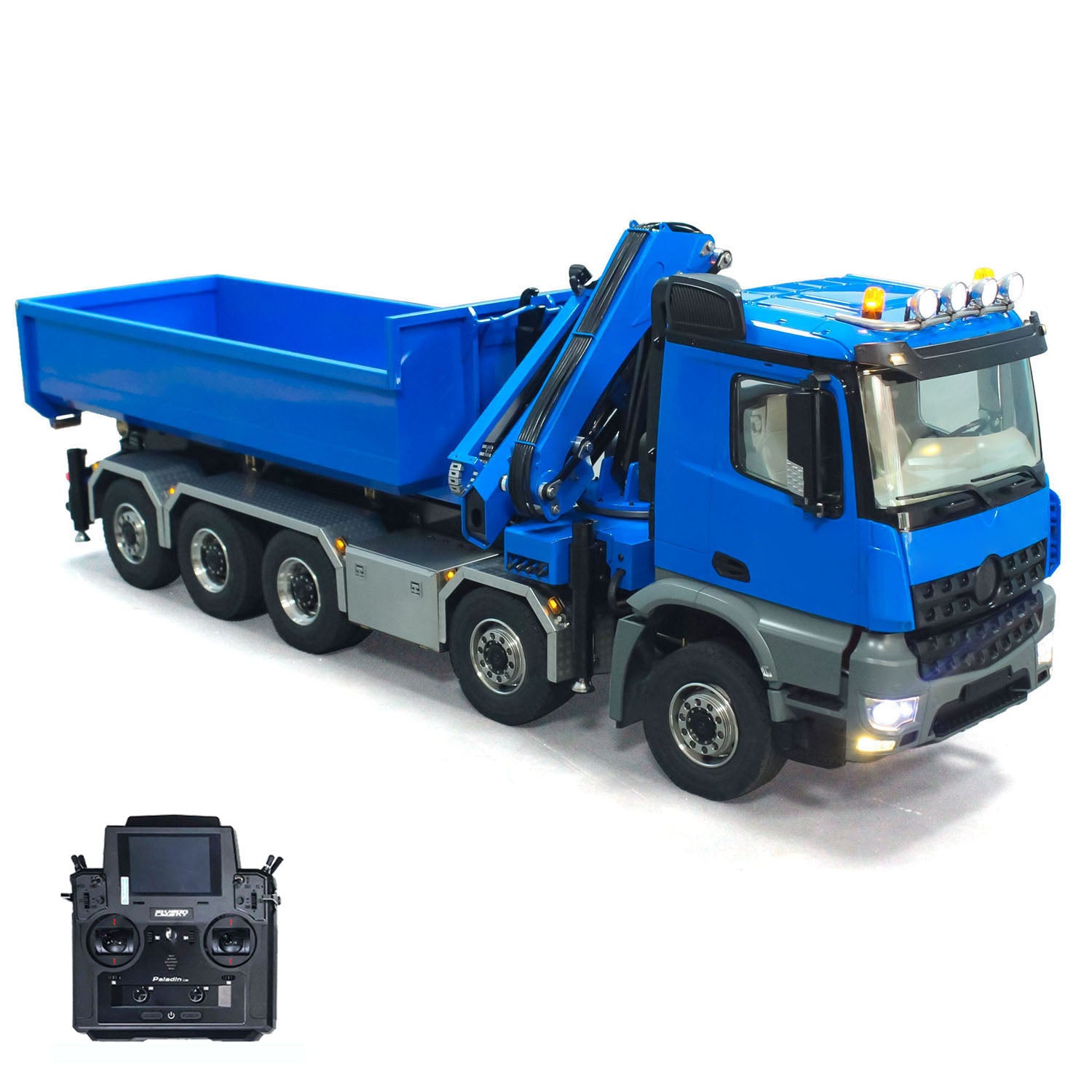

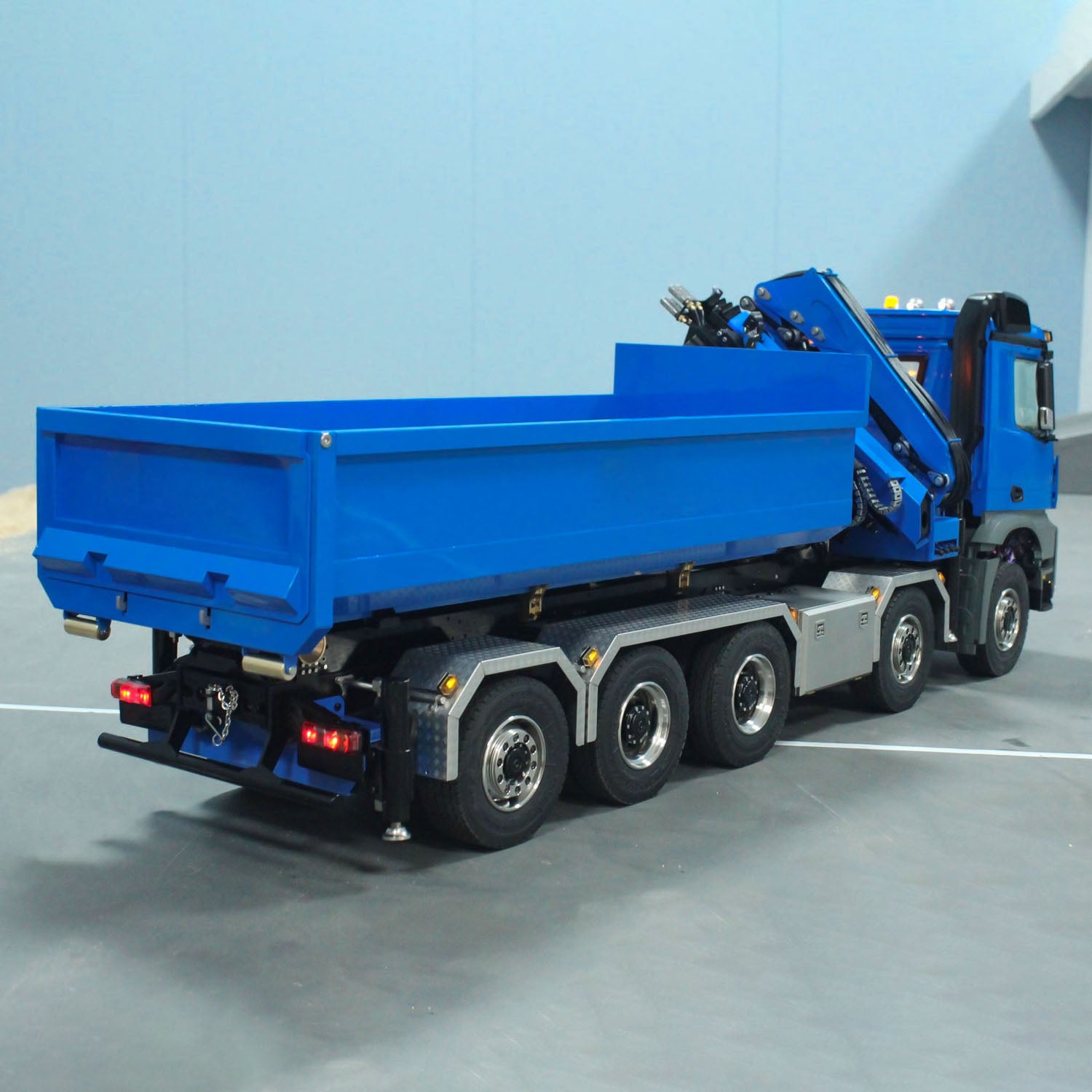

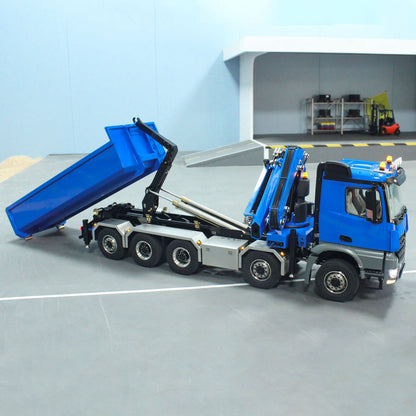

1/14 10x10 RC Hydraulic Full Dump Crane Radio Controlled Dumper Car Truck with U-shaped Bucket PNP/RTR DIY Hobby Model

Specification:
Condition: New, Painted and Assembled
Material: Metal, Plastic
Scale: 1/14
Color: Blue, Grey, Black
Size: About 830x190x290mm
Net Weight: About 15KG
Recommended Vehicle Battery (Not Included): 2S XT60 Lithium/Li-polymer/LiPo Battery (Please contact me if you want to buy the battery)
Battery Compartment: 140x45x25mm
ID: TH-X-BZ-1010-CraneDump-USBKT-PNP-BUGYBK

The Package Includes:
1/14 10x10 RC Crane Dump Truck Model
Motor
Servo
ESC
Hydraulic System with 9-way Reversing Valve
Light System
Sound System
Rear Axle Lifting
Rear Axle Steering
Central Differential Transfer Case
FlySky PL18 Lite / Tandem XE Lite Remote Controller and Receiver (Options)

There are some attachments for optional upgrade, the package option is selected by yourself.
Charger
Battery

The Package Does Not Include:
Hydraulic Oil

Parameter:
Transmission ratio: 1st gear 1/113; 2nd gear 1/86.4; 3rd gear 1/62.1
Bucket dumping angle: 50¡ã
Bucket rated load: 15kg
Vehicle weight: 15kg
Vehicle dimensions: 830mm190mm290mm
Maximum lifting weight with boom fully extended: 0.5kg
Valve: 9-channel all-steel reversing valve
Working oil pressure: 3.5MPA
Recommended Hydraulic oil: Hydraulic oil No. 46

Features:
1. Upgraded 9-Channel Reversing Valve: Enhanced control with a versatile 9-channel reversing valve for precise maneuvering.
2. Durable Construction: Crafted with precision using nodular cast iron for the main components, ensuring durability and longevity.
3. Micro Hydraulic Pump: Utilizes a high-quality micro hydraulic pump for efficient and reliable hydraulic operations.
4. 2mm Hydraulic Piping: Features a complete 2mm hydraulic piping system throughout the entire vehicle, greatly improving aesthetics and organization.

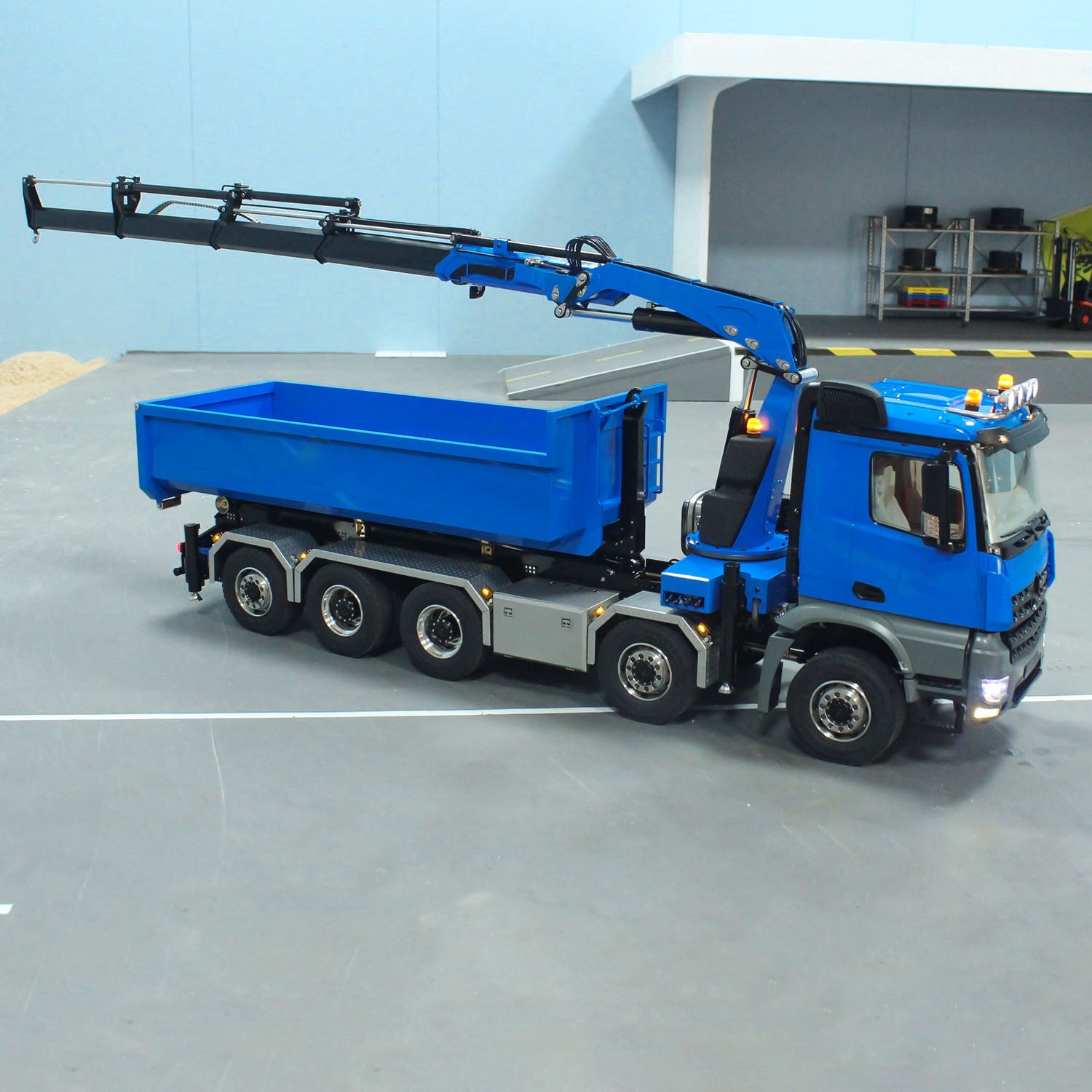

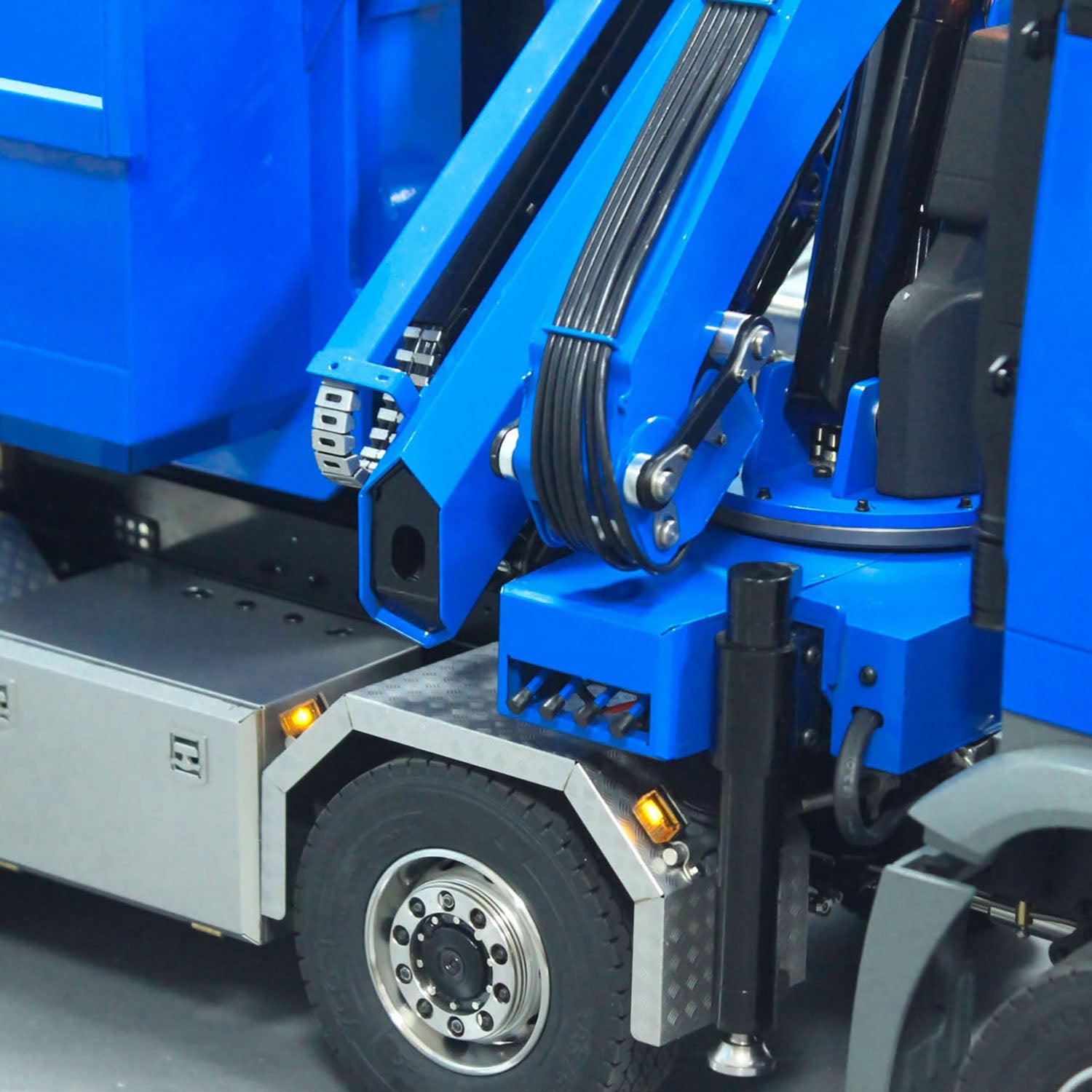

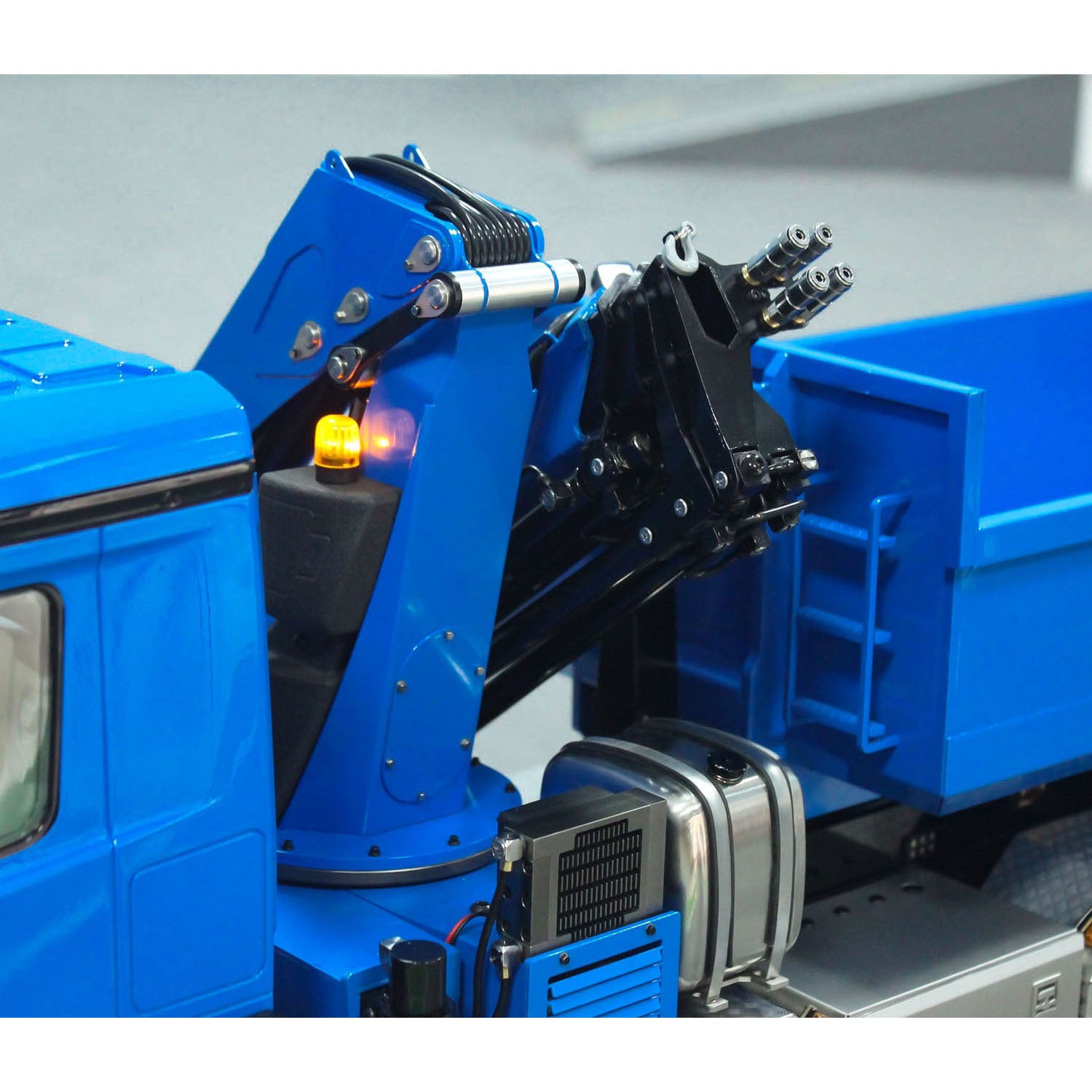

5. Simulated Crane Technology: Equipped with a realistic 4-section telescopic arm with oil cylinder, providing an authentic crane experience.
6. Reserved hydraulic oil channels: Two reserved hydraulic oil channels for upgrade parts.
7. 360¡ã Rotating Oil and Electrical Slip Rings: Enables seamless and continuous rotation for enhanced flexibility during operation.
8. Interchangeable Bucket Types: Fully detachable and replaceable bucket, allowing users to switch between different types of buckets for various tasks.
9. Simulation 3-Speed Gearbox: Mimics the functionality of a 3-speed gearbox, providing a realistic driving experience.
10. 10x10 Wheel-Side Reduction Axle: Features a specialized wheel-side reduction axle with 10x10 configuration for improved traction and stability.
11. Central Differential and Axle Locks: Equipped with a central differential and differential locks on all axles, enhancing control and stability on challenging terrains.
12. Simulated Radiator with Fan: Realistic radiator design with an integrated fan for authentic heat dissipation effects.
13. Simulated Stainless Steel Components: Includes simulated stainless steel components such as variable-section main beam, drive shaft, and wheels, enhancing both aesthetics and durability.
14. Headlights, roof illumination lights, and side lights are controlled together with the central differential through the same channel. The three rotating lights illuminate when powered, and they cannot be controlled remotely.
15. Simulation Engine Sound Group: Delivers a realistic engine sound experience, adding to the overall immersive play.
16. Roof Cup Lights and Rotating Engineering Lights: Features roof cup lights and rotating engineering lights for added visual appeal.
17. Simulated Interior Platform: Includes a simulated interior platform for a detailed and lifelike appearance.
18. Linked Tail Axle Steering & Lifting: Enables linked steering and lifting on the tail axle, providing precise control and maneuverability.

If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
