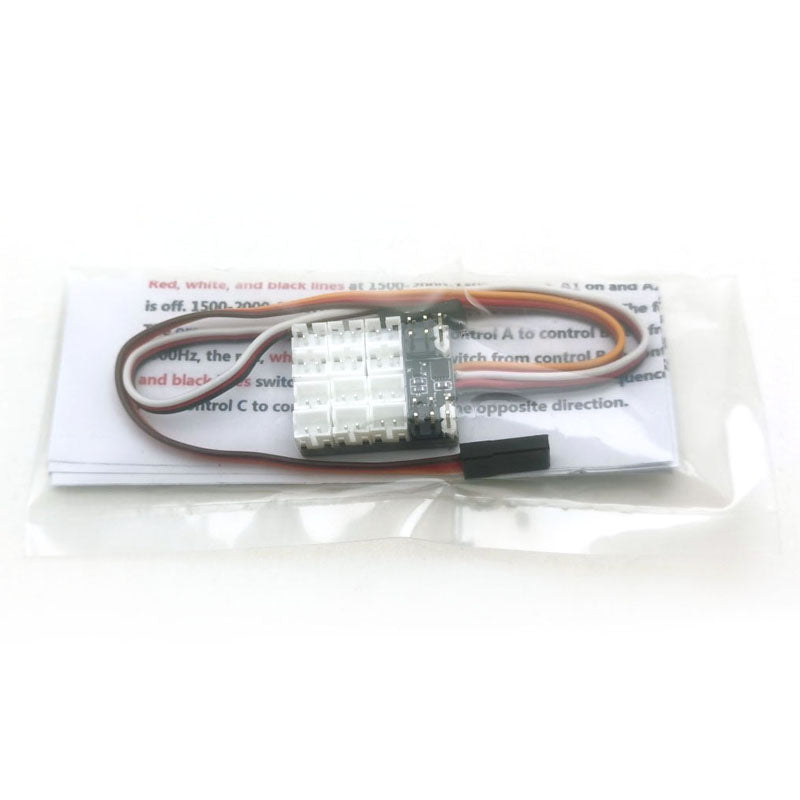

Degree LED Light Controller Lights System for 1/14 RC Tractor Car Dumper Truck Remote Control Construction Vehicles DIY Models

Specification:
Manufacturer: Degree
Item Condition: New
Scale: 1/14
Material: Plastic
Voltage Range: 5-8.4V
Size: 27*20mm
Suitable for: 1/14 RC Tractor Car Dumper Truck Remote Control Construction Vehicles, DIY Models
ID: DG-164-LightController

The Package Includes:
1pc Light Controller

Note:
The controller size is 27*20mm, suitable for voltages ranging from 5V to 8.4V. The output voltage of A1 and A2 is the same as the input voltage, and suitable resistors must be connected in series to connect the LED!
2 sets of PWM control (The orange-red-gray line controls signal cycling. The white-red-black line specifically outputs A, B, or C signals).
This light controller can control the on/off switch of 2 sets of lights and the on/off switch of 2 sets of warning lights.

Operating Instructions:
Red-white-black lines at 1500-2000-1500Hz once, A1 on and A2 off; for the second time at 1500-2000-1500Hz, A2 is on and A1 is off; for the third time at 1500-2000-1500Hz, A1 and A2 are on; for the fourth time at 1500-2000-1500Hz, A1 and A2 are extinguished.
The orange-red-gray line switches from control A to control B at a frequency of 1500-2000-1500Hz. The second time from 1500-2000-1500Hz, the red-white-black lines switch from control B to control C. The third time from 1500-2000-1500Hz, the red-white-black lines switch from control C to control A. Move-in sequence from 1500-1000-1500Hz, the red-white-black lines switch from control C to control B, and cycle in the opposite direction.
